The installation procedure depends on the type of PC you are using. Three types of PC are supported: Nvidia Jetson Nano, Raspberry Pi, and NUC.

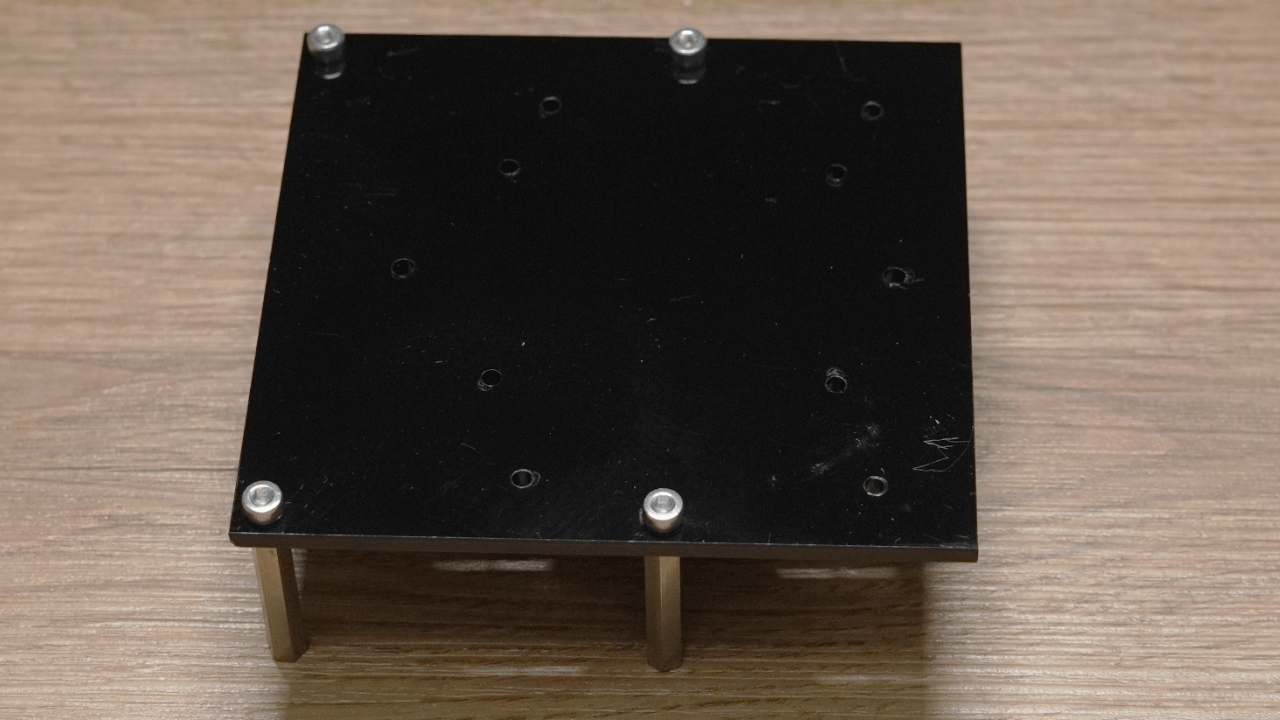

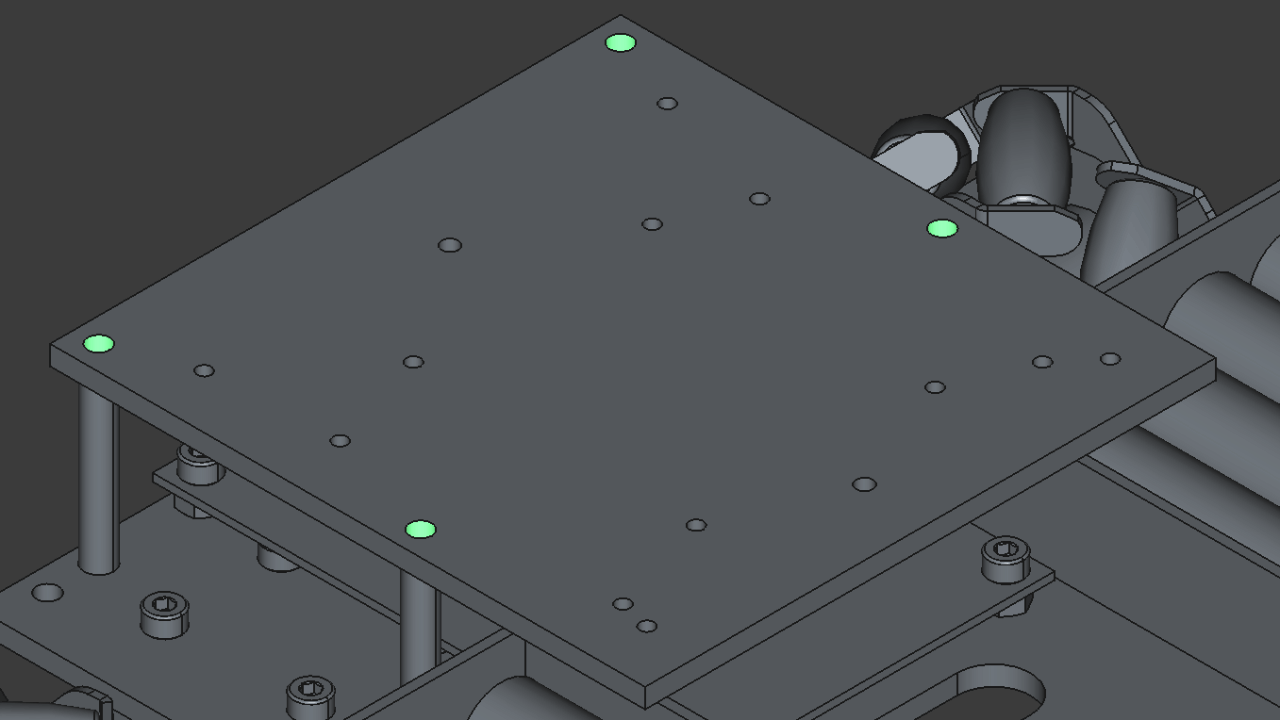

Insert M4 screws through the PC plate into the M4 standoffs and tighten them with a hex key. Then install the PC according to its type.

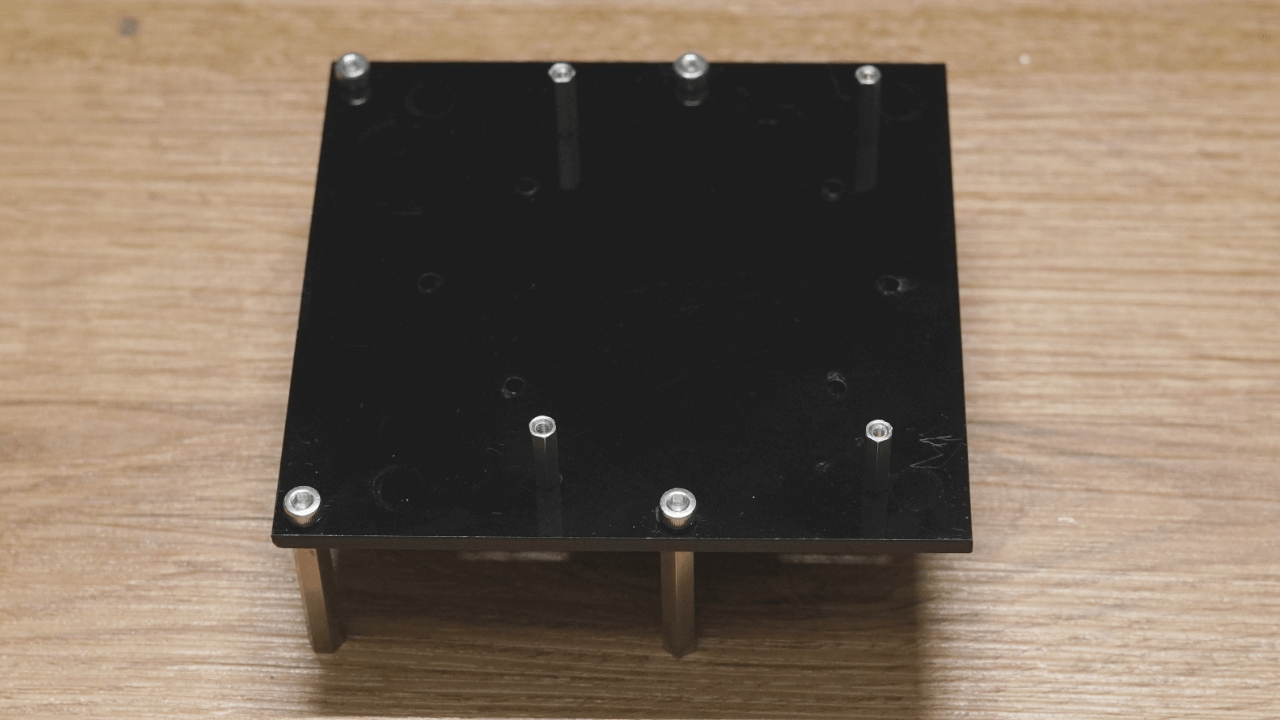

Insert M2.5 screws through the PC plate into the M2.5 standoffs and tighten them with a hex key.

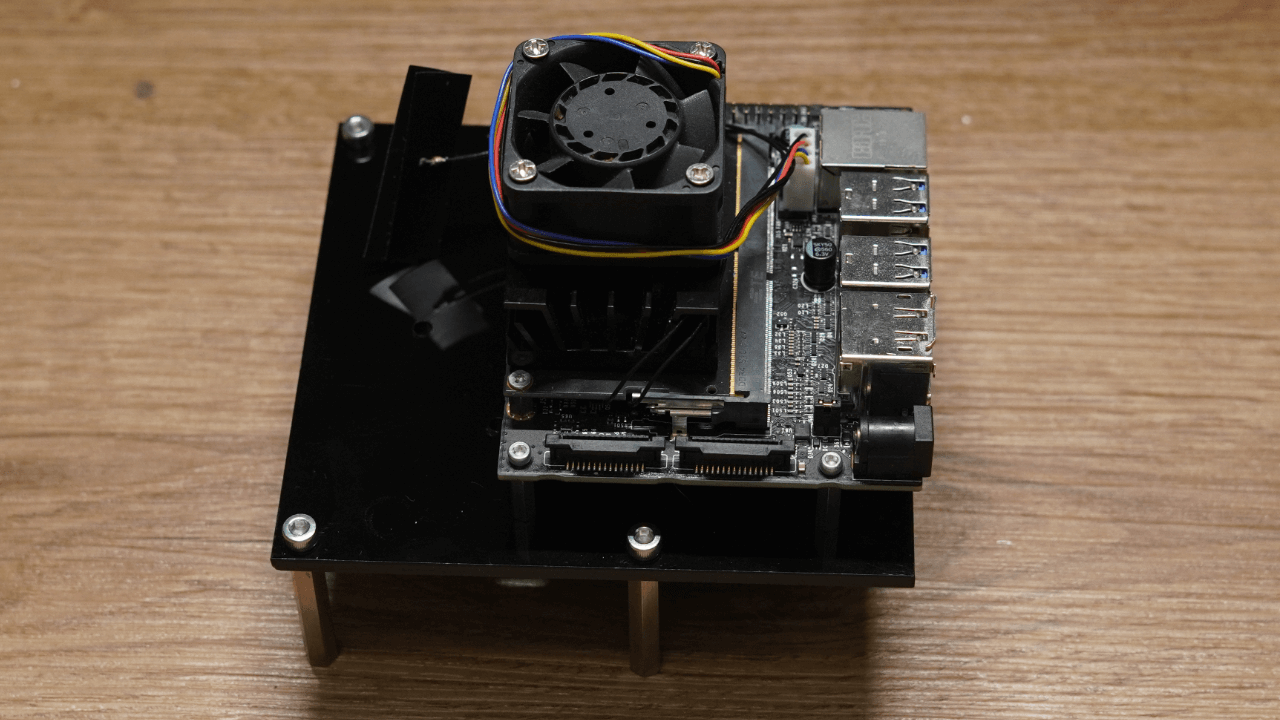

Secure the Jetson Nano to the standoffs using M2.5 screws and a hex key.

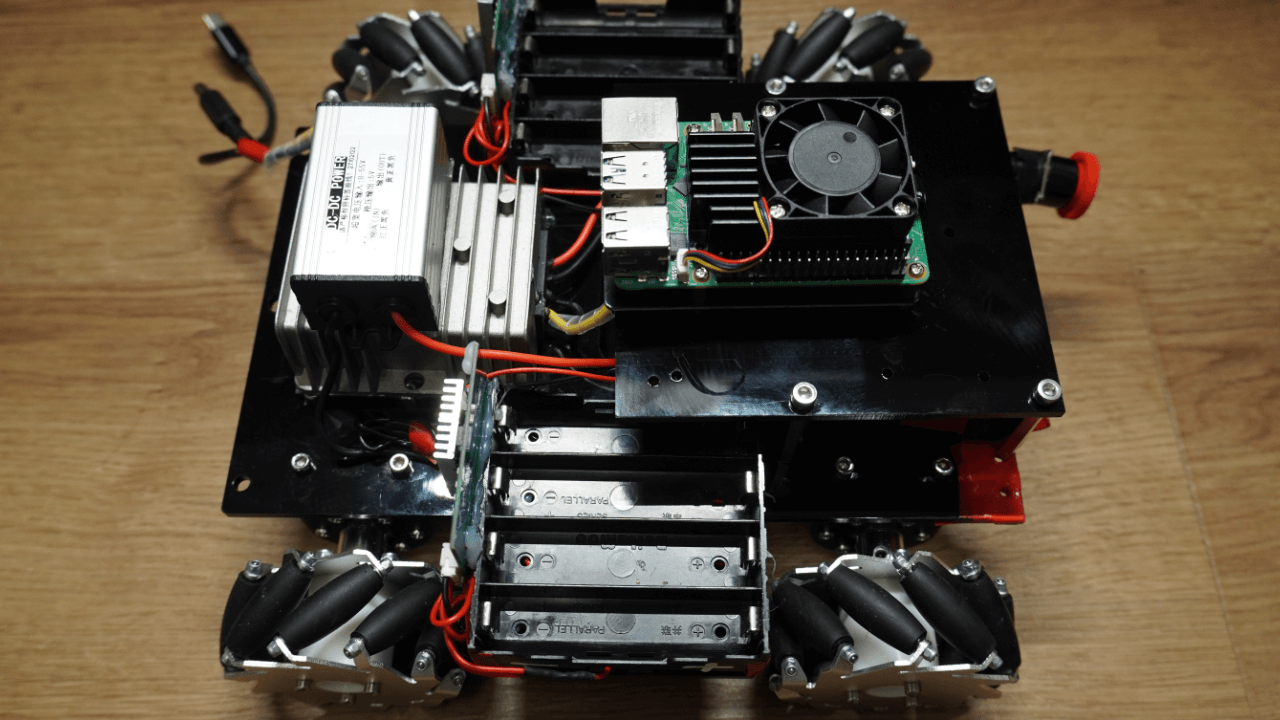

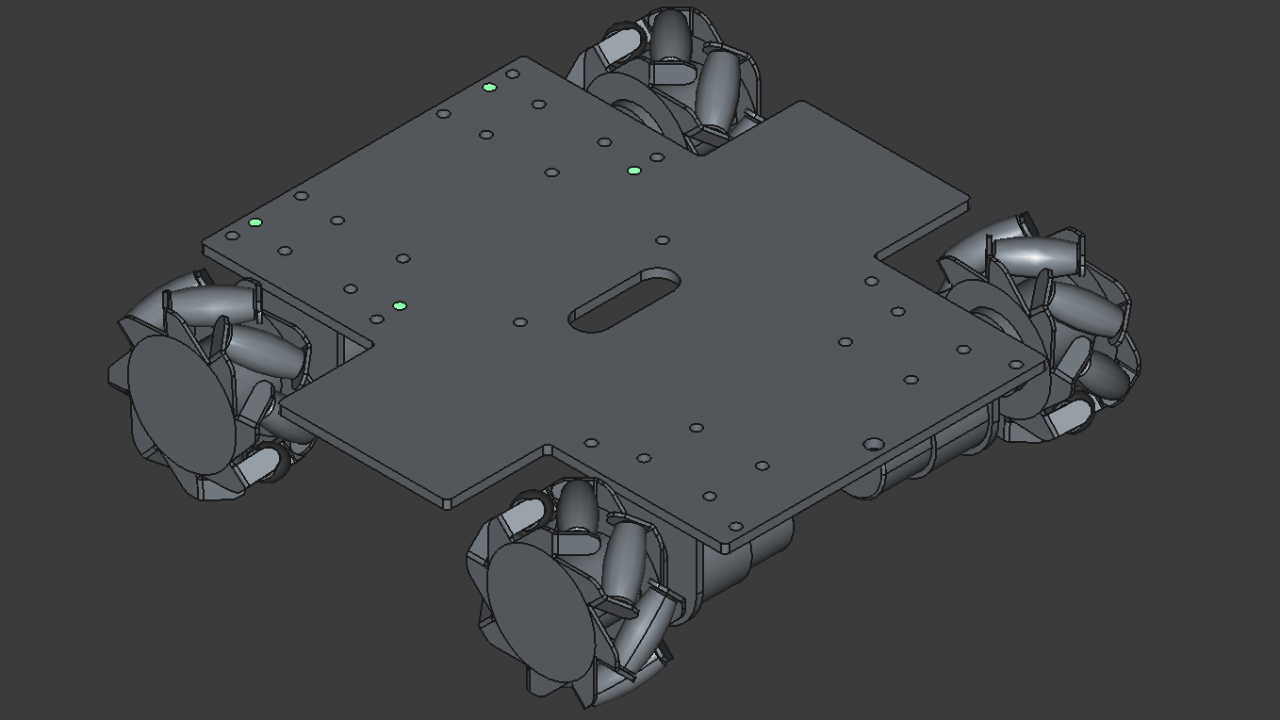

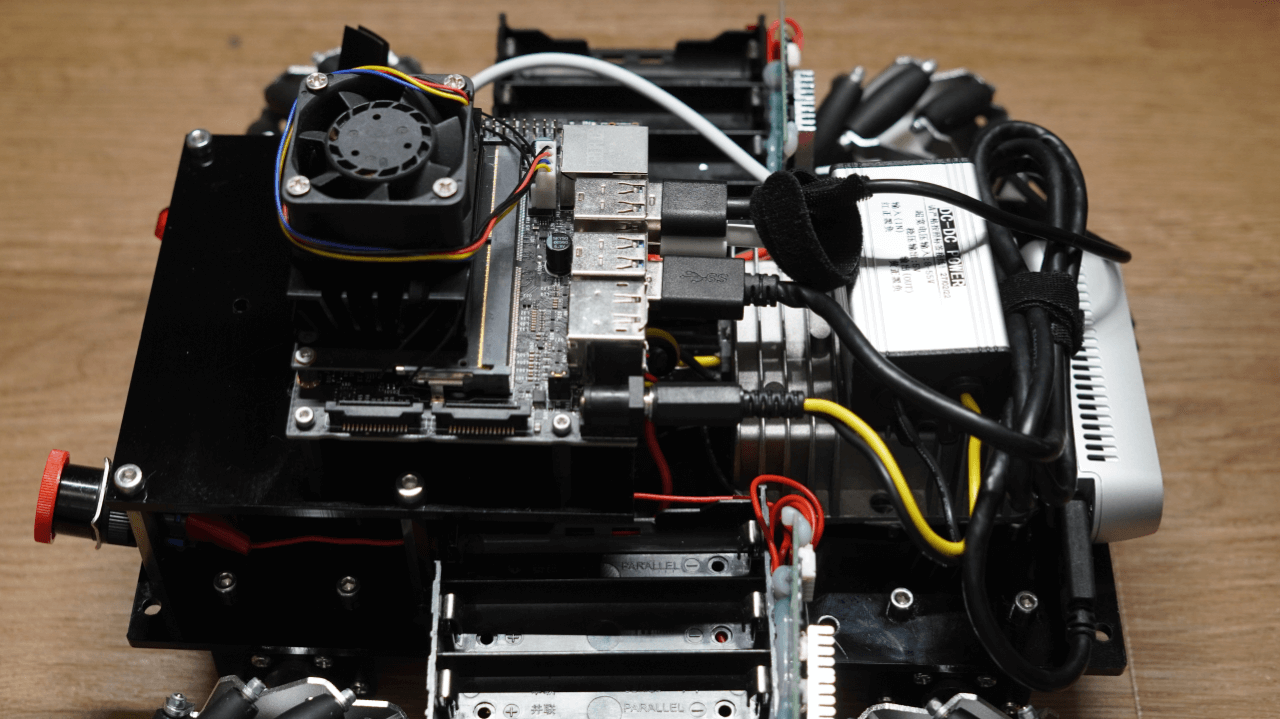

Insert M4 screws through the PC plate into the M4 standoffs and tighten them with a hex key. Then secure the PC plate to the bottom plate using M4 screws and a hex key. Connect the USB cables for the controller board, camera, and LiDAR.

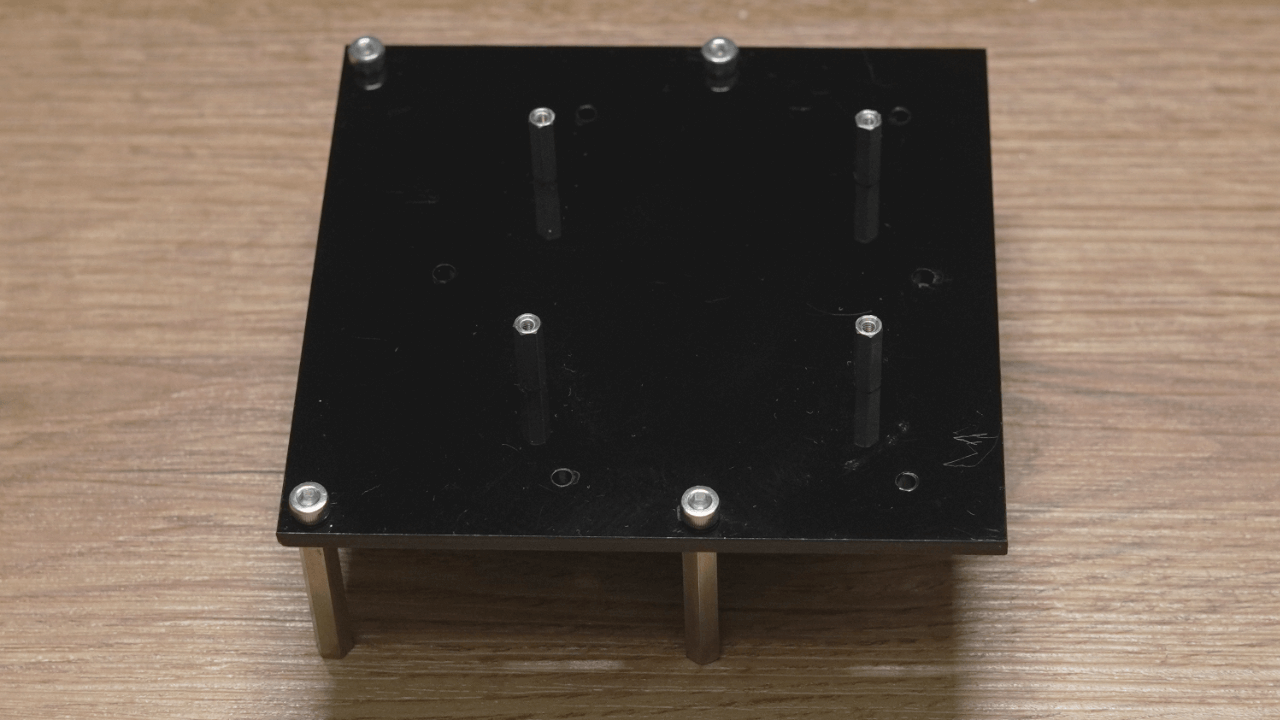

Insert M2.5 screws through the PC plate into the M2.5 standoffs and tighten them with a hex key.
Secure the Raspberry Pi to the standoffs using M2.5 screws and a hex key.
Insert M4 screws through the PC plate into the M4 standoffs and tighten them with a hex key. Then secure the PC plate to the bottom plate using M4 screws and a hex key. Connect the USB cables for the controller board, camera, and LiDAR.

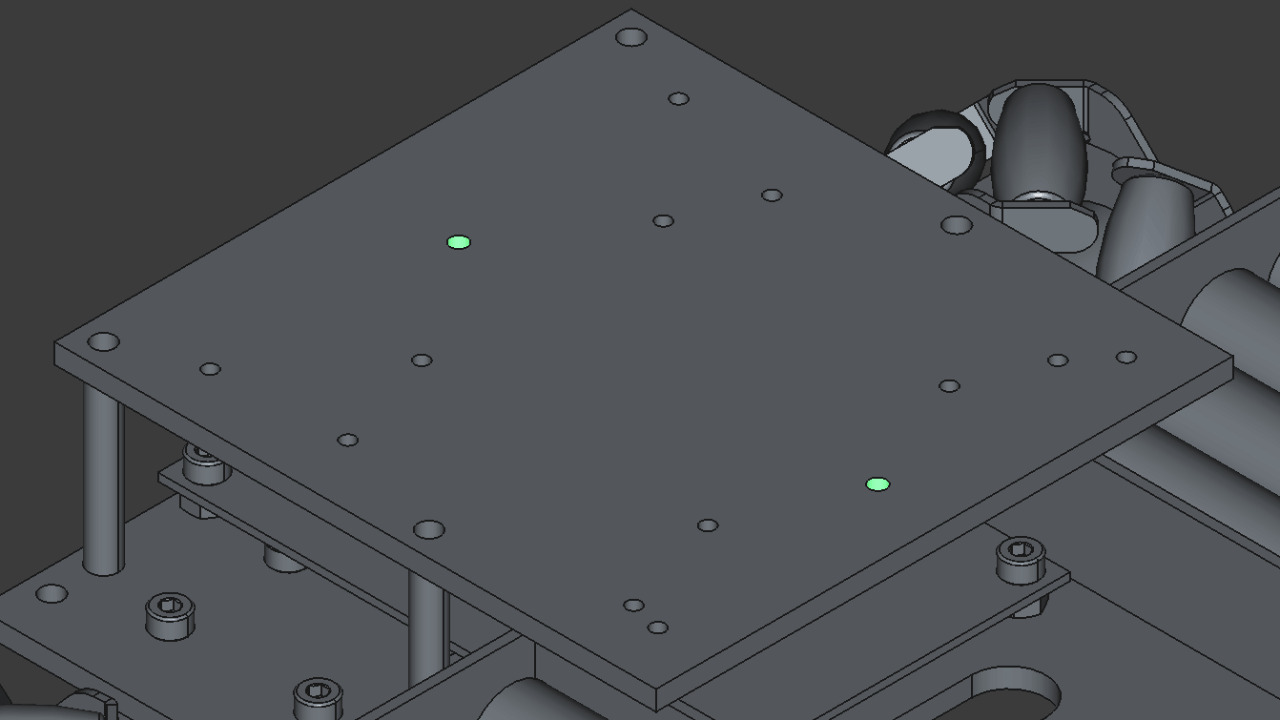

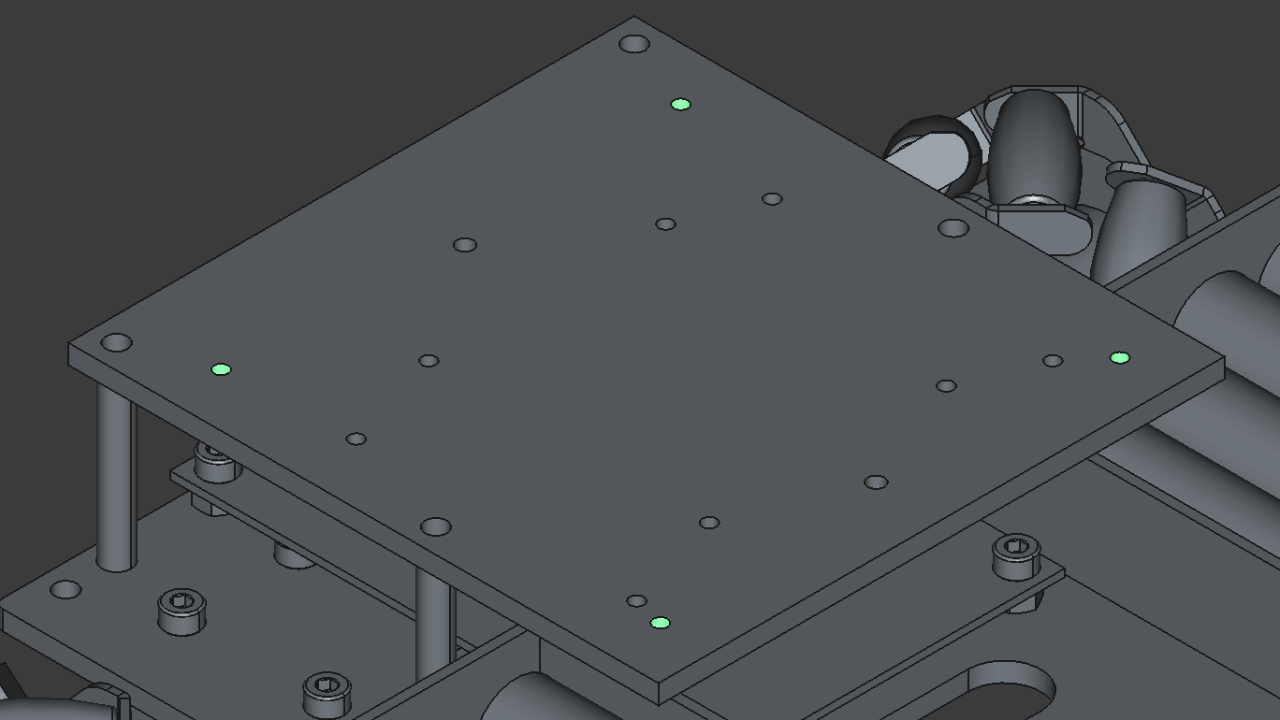

Place the NUC on the PC plate and secure it using M3 screws from the underside of the NUC, tightening with a hex key.
Secure the PC plate to the bottom plate using M4 screws and a hex key. Connect the USB cables for the controller board, camera, and LiDAR.
