A robot is required for most operations in this tutorial. You will therefore need to create a robot entry in the system and download the necessary certificates.

Step 1: Navigate to the Robots Creation Page

Expand the Navigation, select Robots and click Create Robot button in the top-right corner.

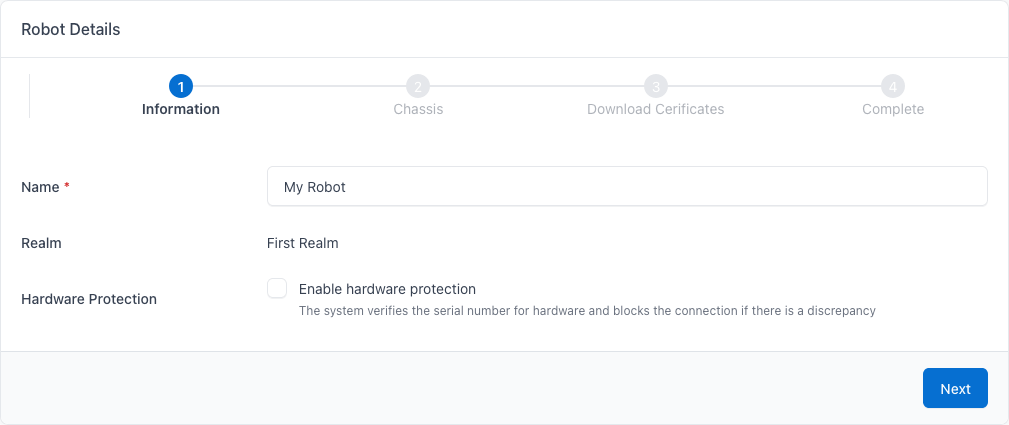

Step 2: Configure the Robot Name

Enter a robot name and press Next.

• Hardware Protection: When enabled, LGDXRobot Cloud verifies the serial numbers of the motherboard and MCU. If they don’t match the records in the database, the connection will be rejected.

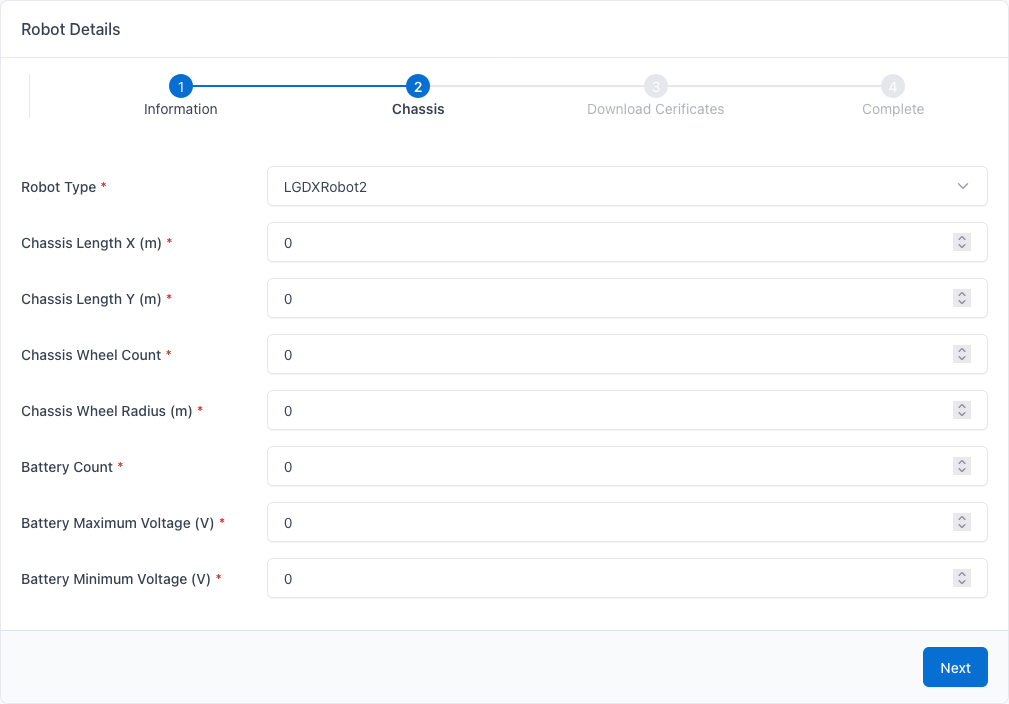

Step 3: Enter Chassis Information

Select LGDXRobot2 as the robot type. Enter 0 for the remaining fields, then press Next.

The chassis information does not affect system behaviour.

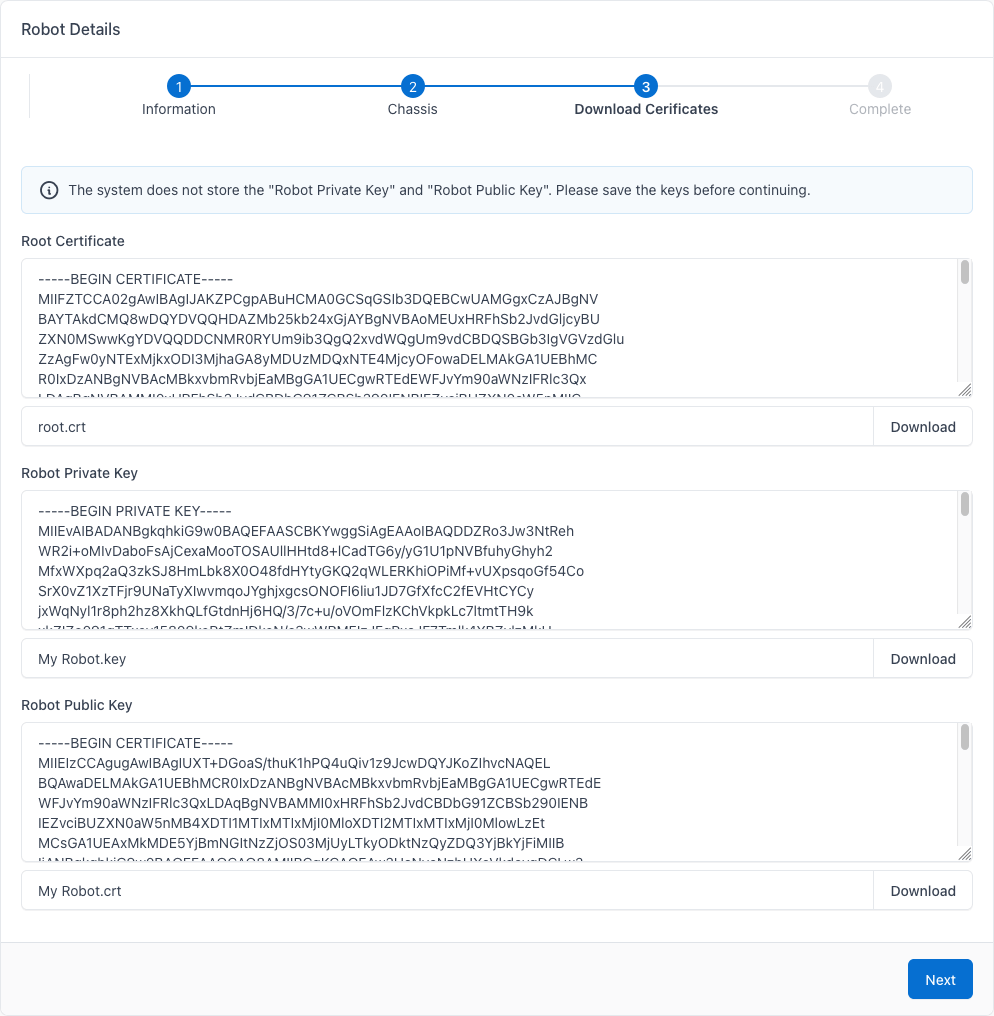

Step 4: Download Certificates

Download all the certificates and press Next, then press Done.

The system does not store the robot’s private keys. If lost, you can renew the certificates to generate new ones.

Step 5: Install Certificates

Move all certificates to the folder you created for storing the keys, or send them to the robot computer.
