Launching an Automation Task

Finally, the system is ready to start the first automation task.

Step 1: Create A Task

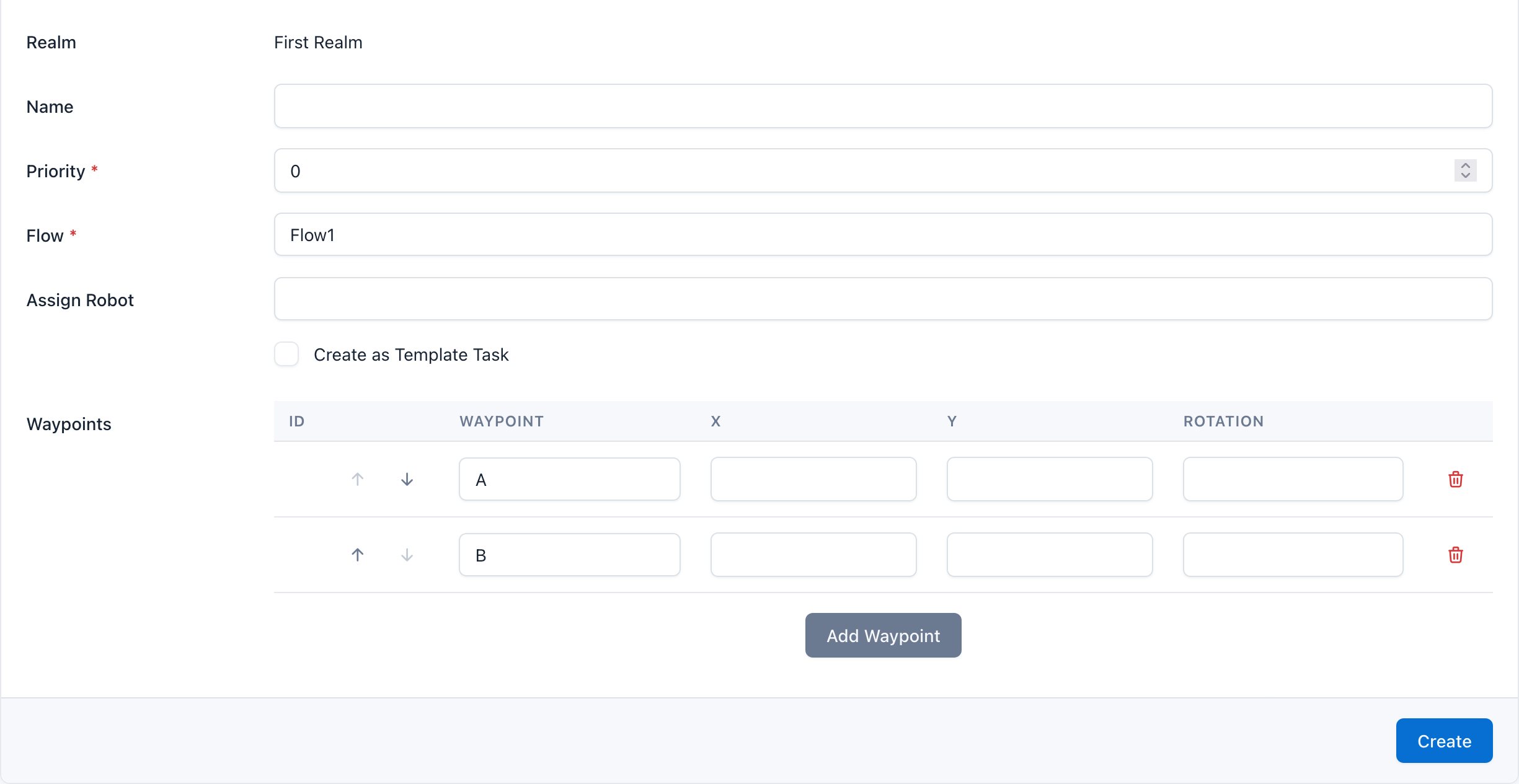

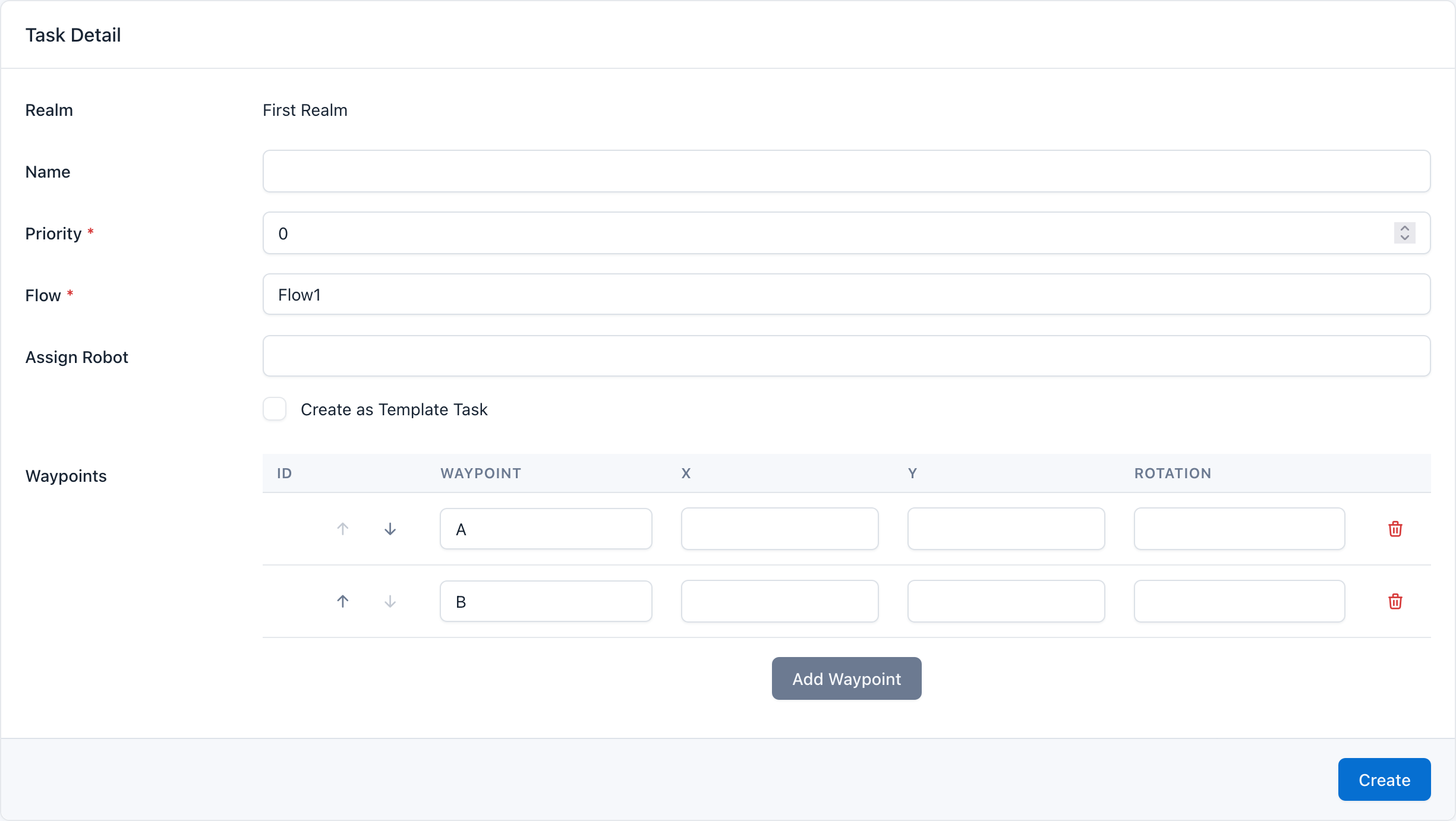

Expand the Automation, select Tasks and press Create Task in the top-right corner.

Enter the name of your newly created flow. Then, select waypoint A and press Add Waypoint. Next, select waypoint B. Press Create.

  • Priority indicates the importance of the task; a higher value means higher priority.
  • Assign Robot allows you to specify which robot will run the task.
  • Create as Template Task enables you to save the task as a template for quicker creation in the future.
  • You can specify custom X, Y, or Rotation values to override the predefined waypoint coordinates.

Step 2: View The Task

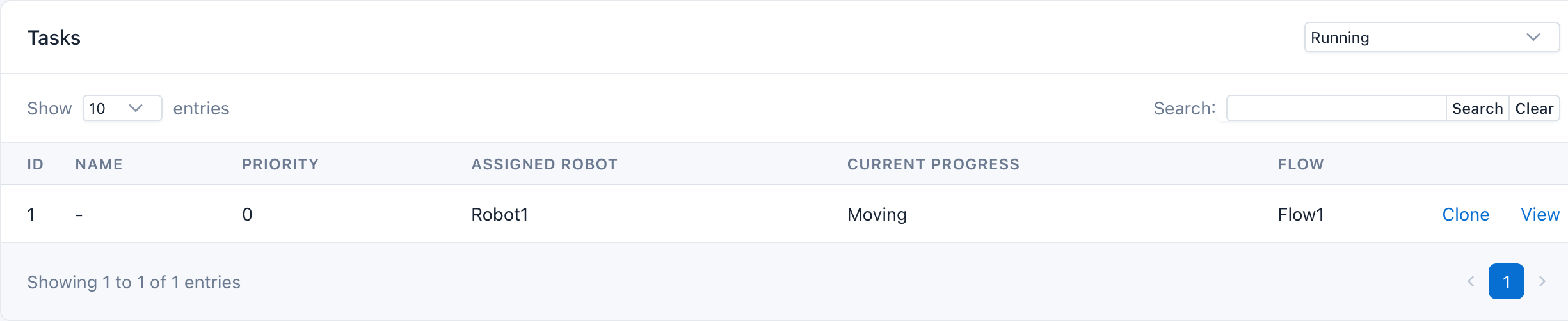

You will be redirected to the task list page, which may appear empty initially. Select Running at the top right to filter active tasks.

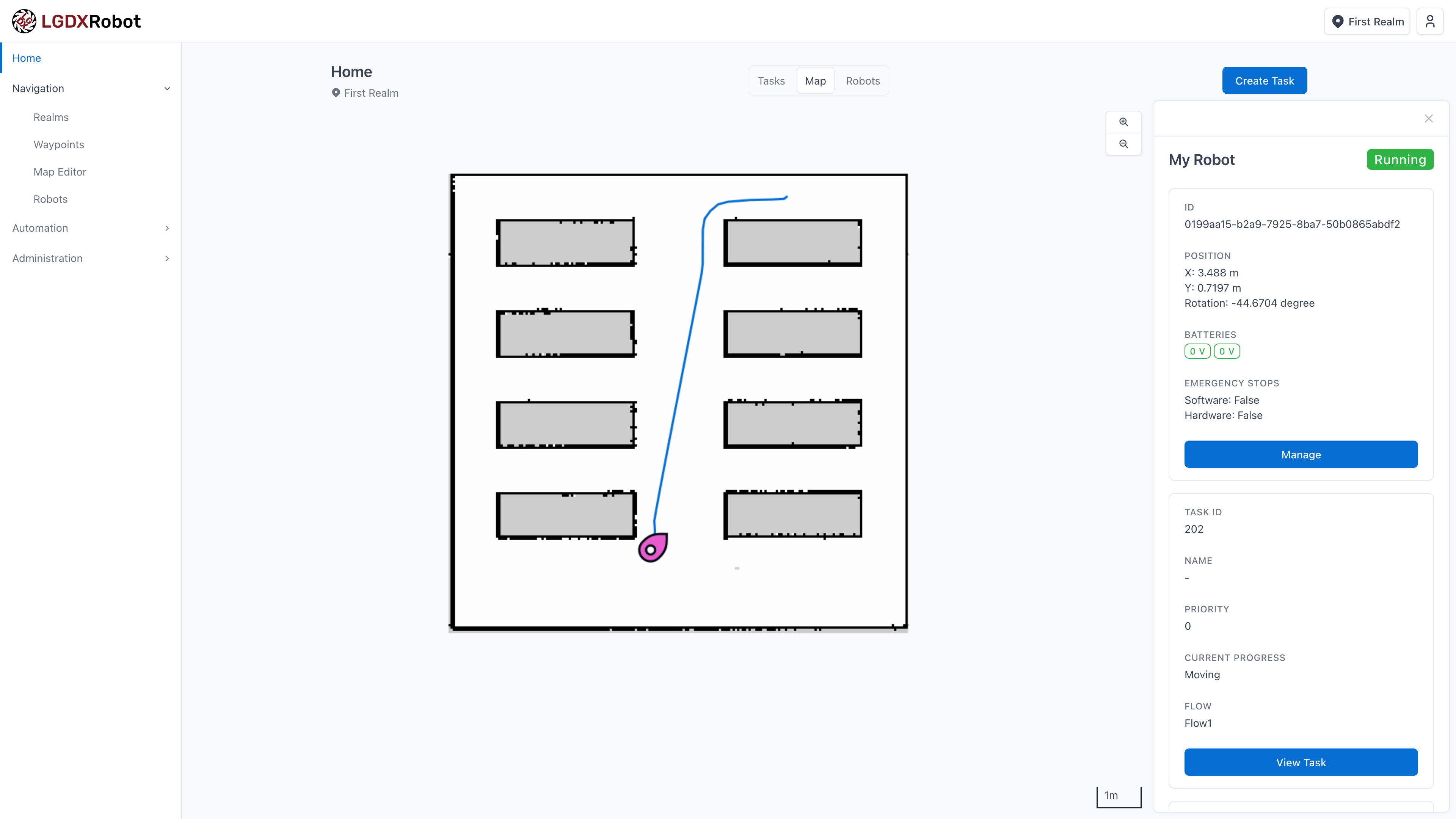

Click Home then click Map on the top menu bar to view the real-time progress of the task. Press the robot pin to expand its information and planned path.
