Third-Party API Access

This tutorial describes how to gain access to the API using Postman.

Authentication to the API

1. Create an LGDXRobot Cloud API Key and note the secret key.
2. In Postman, create a new request https://localhost:5163/Identity/Auth/Login and set the method to POST.

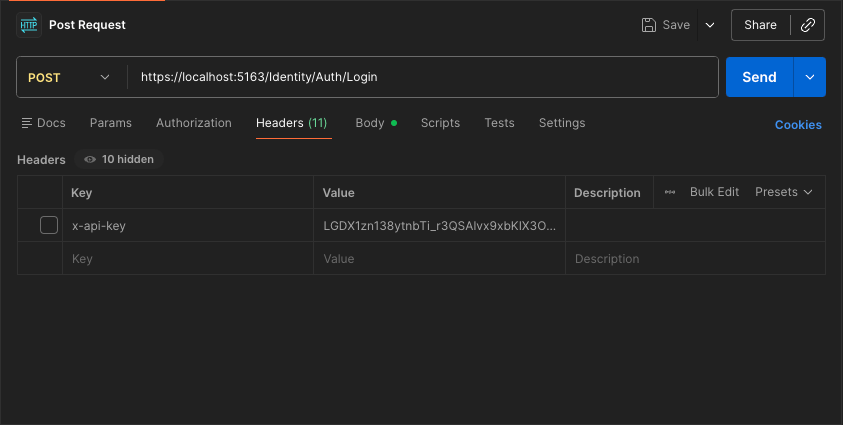

3. In the Headers tab, add a new key X-API-Key and set the value to the API Key.

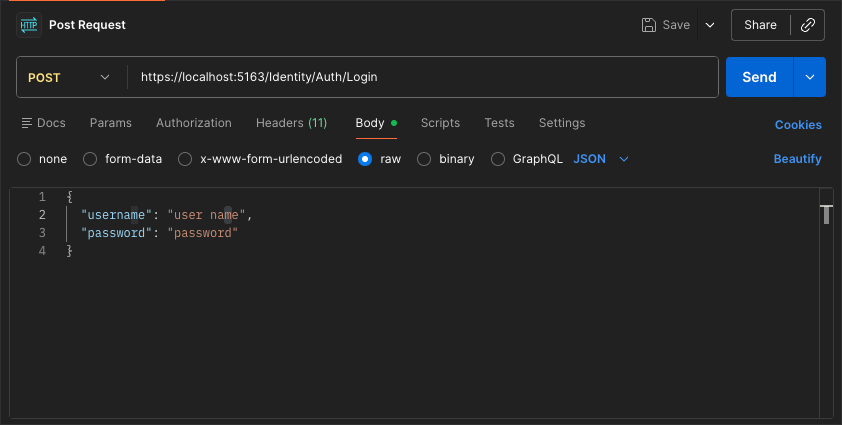

4. In the Body tab, add a JSON object with the following properties:

{
  "username": "<User name>",
  "password": "<Password>"
}

5. Click Send.
6. Note the accessToken and refreshToken in the response.

Access the API

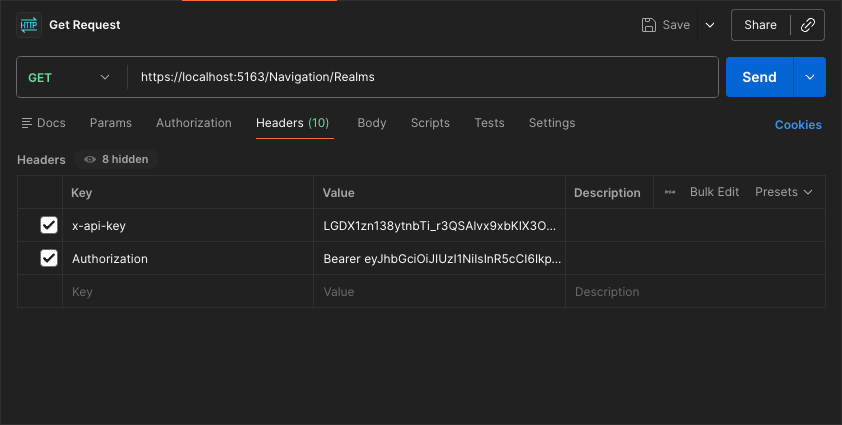

1. In Postman, create a new request https://localhost:5163/Navigation/Realms and set the method to GET.
2. In the Headers tab, add a new key X-API-Key and set the value to the API Key.
3. In the Headers tab, add a new key Authorization and set the value to Bearer <accessToken>.

4. Click Send.
5. The first realm will be shown in the response.

Refresh the Access Token

LGDXRobot Cloud allows refreshing the access token, which is useful for users in third-party UIs that do not require re-authentication. The refresh token can only be used once.

1. In Postman, create a new request https://localhost:5163/Identity/Auth/Refresh and set the method to POST.
2. In the Headers tab, add a new key X-API-Key and set the value to the API Key.
3. In the Headers tab, add a new key Authorization and set the value to Bearer <accessToken>.

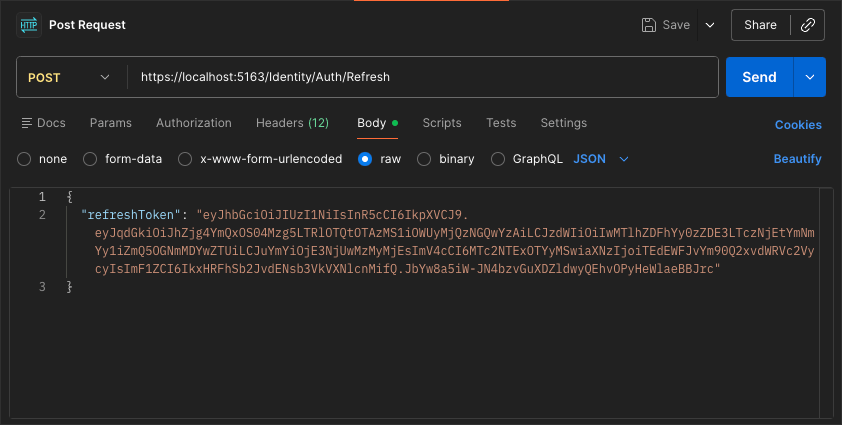

4. In the Body tab, add a JSON object with the following properties:

{
  "refreshToken": "<refreshToken>"
}

5. Click Send.
6. The new accessToken and refreshToken will be shown in the response.
